雙重攪拌真空調和脫氣釜
雙重攪拌真空釜是在調和釜的基礎之上,增加了密封技術而形成。是潤滑脂調和釜和真空脫氣釜的組合體,具有調和與真空脫氣的雙重功能??蓽p少大量的真空脫氣釜空間和投資。潤滑脂在調和的同時進行真空脫氣。3號稠度的潤滑脂一般脫氣時間15分鐘左右既能完成。圖示如下:

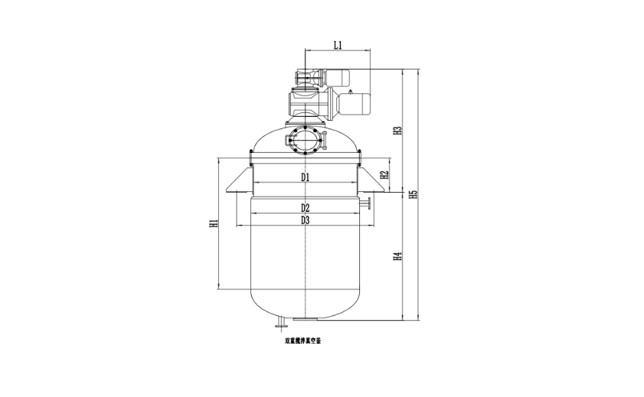

The double stirring vacuum kettle is formed based on the blending kettle, by adding the sealing technology.It is a combination of grease mixing kettle and vacuum degassing kettle, with the dual function of blending and vacuum degassing.Can reduce a large amount of vacuum decompression kettle space and investment.The grease degases while blending. The grease of No.3 consistency can generally be degased in about 15 minutes. The diagram shows the following:
主要規格型號Main specifications and models:
序號Number |
規格型號 specifications and models |
容積(升) Volume (liter) |
01 |
CF-500K |
500 |
02 |
CF-1000K |
1000 |
03 |
CF-1500K |
1500 |
04 |
CF-2000K |
2000 |
05 |
CF-2500K |
2500 |
06 |
CF-3000K |
3000 |
07 |
CF-3500K |
3500 |
08 |
CF-4000K |
4000 |
09 |
CF-4500K |
4500 |
10 |
CF-5000K |
5000 |
11 |
CF-5500K |
5500 |
12 |
CF-6000K |
6000 |
13 |
CF-6500K |
6500 |
14 |
CF-7000K |
7000 |
15 |
CF-7500K |
7500 |
16 |
CF-8000K |
8000 |
17 |
CF-8500K |
8500 |
18 |
CF-9000K |
9000 |
型號說明:CF-1000K ,CF-常壓釜 1000-1000升 ,K-真空。外槳可變頻調速。
Model description: CF-1000K, CF-Open kettle 1000-1000 L, K-Vacuum. The external agitator is able to be variable frequency.
